Nipolet Pipe Flange Manufacturers | ASME/ANSI B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092

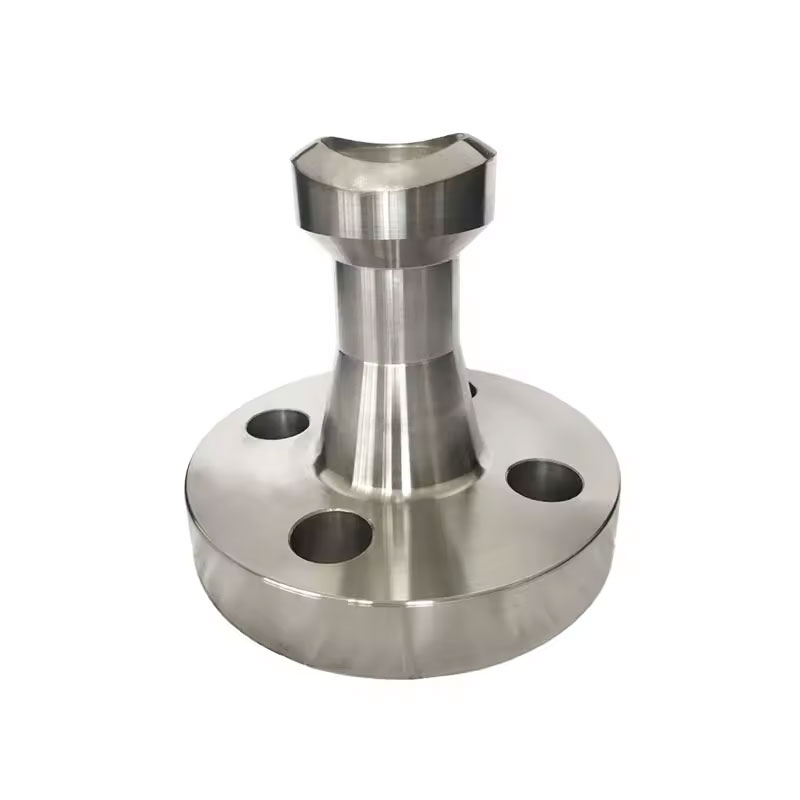

A Nipoflange, is a specialized fitting used to create a branch connection in a piping system. It combines the features of both a flange and a branch fitting, allowing a smaller pipe to be securely connected to a larger one without requiring additional welding or complex assemblies. This design offers a simple, efficient, and cost-effective solution for creating lateral connections in tight spaces or when a streamlined approach is needed.
Nipolet Flange made from materials like carbon steel, stainless steel, or alloy steels, nipoflanges are built to withstand high pressures and harsh environments. Nipoflange are commonly used in industries such as oil and gas, chemical processing, and water treatment, offering flexibility and durability to meet specific system requirements. With ease of installation and reliable performance, nipoflanges are a popular choice for many piping applications.
Ample Alloys is a leading supplier of high-quality piping components, known for its commitment to providing durable and reliable materials for a wide range of industrial applications. When it comes to nipoflanges, We stands out for offering products that meet strict industry standards, ensuring both strength and longevity. Our expertise in manufacturing and supplying customized piping solutions makes an essential partner for projects requiring precision and high-performance materials.
Industrial Nipolet Flange, Branch Connection Flange, Flanged Nipolet, Nipolet Weld Neck, Forged Nipolet Flange, Stainless Steel Nipolet Flange, Nipolet Flange for Pipeline, High-Pressure Nipolet Flange, Forged Steel Nipolet, API Nipolet flange
ASME/ANSI B16.5 Nipoflange
Size Range
15mm ( 1/2" NPS ) up to 600mm ( 24" NPS ), For 2500# in sizes from NPS 1/2 to NPS 12
Flange Face Type
FF—Flat Face, RF—Raised Face, FM—Female Face, M—Male Face, T—Tongue Face, G—Groove Face, RJ—Ring Joint.
Stainless Steel
ASTM A182 F 304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.
Standards / Dimension
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN
Carbon Steel
ASTM A105/A105N (SA105N), LTCS A350 LF2, A694
Alloy Steel
ASTM A182 / SA182 - F1 / F5 / F9 / F11 / F12 / F22 / F91
Pressure Class
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64.
Duplex & Super Duplex
ASTM A182 / ASME SA182 - S31803, S32205, 2205, S32750, S32760, S32950, 2507.
MTC
EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103
Niplote Pipe Flange Standards
Nipolet pipe flanges, also known, adhere to various industry standards that ensure proper design, material specifications, and pressure ratings. Here are some key standards for nipolet pipe flanges:
- ASME/ANSI Standards (American):
- ASME B16.5 – Pipe Flanges and Flanged Fittings (NPS 1/2" to 24").
- ASME B16.47 – Large Diameter Steel Flanges (Series A & B, NPS 26" to 60").
- ASME B16.36 – Orifice Flanges.
- ASME B16.48 – Line Blanks (Spectacle, Spade, and Spacer Flanges).
- ANSI B16.1 – Cast Iron Flanges and Flanged Fittings.
- ANSI B16.42 – Ductile Iron Pipe Flanges and Flanged Fittings.
- ISO Standards (International)
- ISO 7005-1 – Steel Flanges for General Applications.
- ISO 7005-2 – Cast Iron Flanges.
- ISO 7005-3 – Copper Alloy Flanges.
- EN Standards (European)
- EN 1092-1 – Steel Flanges.
- EN 1092-2 – Cast Iron Flanges.
- EN 1092-3 – Copper Alloy Flanges.
- EN 1092-4 – Aluminium Alloy Flanges.
- DIN Standards (German)
- DIN 2527 – Blind Flanges.
- DIN 2576 – Slip-On Flanges (PN 10).
- DIN 2633 – Weld Neck Flanges (PN 16).
- DIN 2634 – Weld Neck Flanges (PN 25).
- DIN 2635 – Weld Neck Flanges (PN 40).
- JIS Standards (Japanese)
- JIS B2220 – Steel Pipe Flanges.
- GOST Standards (Russian)
- GOST 12820 – Flat Flanges for Steel Pipe Joints.
- GOST 12821 – Steel Welded Flanges for High-Pressure Applications.
- GOST 33259 – Flange Connections for Industrial Equipment and Pipelines.
- BS Standards (British)
- BS 4504 – Circular Flanges for Pipes, Valves, and Fittings.
- BS 10 – Specification for Flanges and Bolting.
- API Standards (Oil & Gas)
- API 6A – Wellhead and Christmas Tree Equipment Flanges.
- API 605 – Large-Diameter Carbon Steel Flanges (merged into ASME B16.47 Series B).
- AWWA Standards (Waterworks)
- AWWA C207 – Steel Ring Flanges for Waterworks Service.
- MSS Standards (Manufacturer's Standardization Society)
- MSS SP-44 – Steel Pipe Flanges (merged into ASME B16.47 Series A).
- MSS SP-51 – Flanges for Glass-Lined Equipment.
- Material-Specific Standards (ASTM)
- ASTM A105 – Carbon Steel Forged Flanges.
- ASTM A182 – Alloy and Stainless Steel Forged Flanges.
- ASTM A350 – Carbon and Low-Alloy Steel Flanges for Low-Temperature Service.
- ASTM A694 – High-Strength Carbon and Alloy Steel Flanges for High-Pressure Applications.
- Other Regional and Specialized Standards
- KS B1511 – Korean Standard Flanges.
- NF E29-206 – French Standard Flanges.
- SANS 1123 – South African Standard for Steel Flanges.
Why Choose Ample Alloys for Nipolet Flanges
Ample Alloys offers top-quality nipolet flanges designed for durability and reliability in demanding applications. With a wide range of sizes, materials, and custom solutions, they ensure the perfect fit for your piping system needs.
Global Reach
Ample Alloys serves industries worldwide, ensuring their nipolet flanges are suitable for diverse applications, from oil and gas to chemical processing.
Competitive Pricing
Offering cost-effective pricing without compromising on quality, Ample Alloys provides great value for customers in need of reliable and durable nipolet flanges.
Experienced Team
With extensive industry knowledge, Ample Alloys' experts offer valuable guidance and support, helping customers choose the right nipolet flange for their piping systems.
Customization
The company provides tailored solutions, designing nipolet flanges that meet specific customer requirements, from unique dimensions to specialized materials.
The primary function of a Nipolet flange is to provide a reliable connection for branching a smaller pipe from a larger pipeline. It allows easy maintenance and disconnection while offering a compact and efficient solution for lateral connections.
Nipolet flanges are commonly used in industries like oil and gas, chemical processing, water treatment, power plants, and shipbuilding, where reliable and space-efficient branching is necessary.
Nipolet flanges offer several benefits, including cost-effective installation, space-saving designs, reduced downtime for maintenance, and ease of disconnection, making them ideal for temporary shutdowns or maintenance projects.
