Manufacturer of Buttweld Fittings | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43

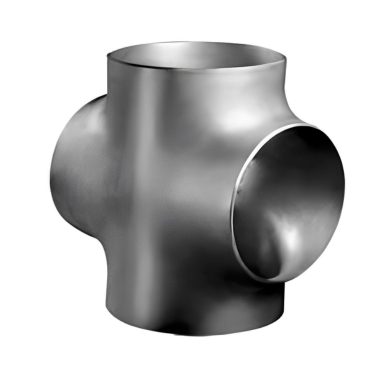

Buttweld Pipe Fittings are specifically engineered to be welded on-site to connect pipes, facilitating changes in direction, diameter, branching, or termination within a piping system. These fittings are integral to systems designed for the safe and efficient transport of fluids such as oil, gas, steam, and chemicals across various distances. The use of buttweld fittings enhances the reliability and integrity of piping systems, especially in demanding environments.
Pipe Fittings are commonly available in a range of materials including carbon steel, stainless steel, nickel alloys, aluminum, and high-yield materials. High-yield carbon steel buttweld fittings are produced in grades such as A234-WPB, A234-WPC, A420-WPL6, Y-52, Y-60, Y-65, and Y-70. Notably, all WPL6 fittings undergo annealing and comply with NACE MR0175 and MR0103 standards, ensuring resistance to sulfide stress corrosion cracking in sour service environments.
Seamless Buttweld Fittings are manufactured from seamless pipes and tubes through processes like hot or cold extrusion, forming, and machining. Seamless fittings are preferred for their superior strength and absence of weld seams, which enhances their reliability in high-pressure applications.
Seam-Welded Buttweld Fittings are made from hot-rolled stainless steel pipes or, upon request, from hot-rolled plates that are formed into half shells or segments, and then welded along the seams. These fittings are widely used where seamless fittings are not feasible, offering flexibility in manufacturing larger sizes and custom shapes.
Ample Alloys stands out as a leading manufacturer, stockist, and exporter of premium buttweld pipe fittings in India. The company offers fittings in a variety of materials including stainless steel, carbon steel, alloy steel, duplex, and super duplex steels. These fittings are available in both seamless and welded forms, meeting the diverse needs of industries such as oil & gas, power generation, petrochemical, and construction sectors, including upstream, midstream, and downstream applications.
Industrial pipe fittings exporter, Schedule 40 buttweld fittings, Stainless, Carbon, Alloy Steel Seamless Buttweld Pipe Fittings, High-Pressure Pipe Fittings
Butt weld Fittings Specifications
Size Range
1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Wall Thickness
Sch 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, XS, 100, 120, 140, 160, Sch XXS
Stainless Steel
ASTM A403 WP 304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.
Standards / Dimension
ASME B16.9, ASME B16.28, MSS SP-43, MSS SP-75, ASTM A234, ASTM A403, DIN 2605, 2615, 2616, 2617, 10253.
Type
Seamless, Welded, Fabricated
Alloy Steel
ASTM A234, WP1, WP5, WP9, WP11, WP22, WP91, etc.

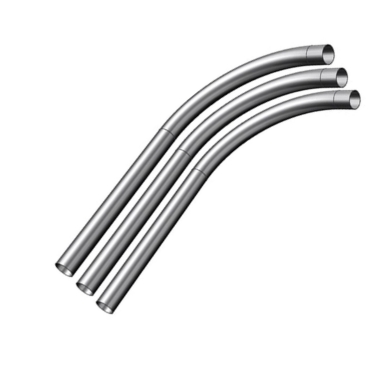

Bending Radius
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Carbon Steel
ASTM A234, A420, MSS-SP-75, WPB, WPL3, WPL6, WPHY 42, WPHY 46, WPHY 52, WPHY 56, WPHY 60, WPHY 65, WPHY 70
Duplex & Super Duplex
ASTM A815 / A815M, UNS S31803 / 2205, UNS S32205, UNS S32101 / LDX 2101, UNS S32750 / 2507, UNS S32760, UNS S32550 / Ferralium 255.
ASME B16.9 Buttweld Fittings Dimensions
| Pipe Elbow Nominal Size | Pipe Elbow Outside Diameter Y |
Wall Thickness T (Pipe Elbow Schedule) |

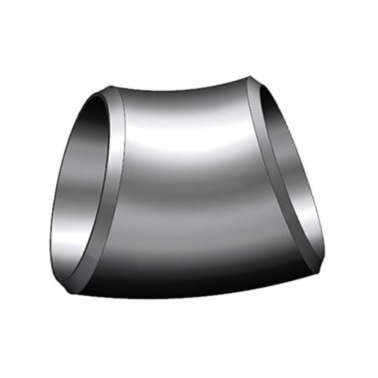

45 Deg. Elbow LR Centre to Face B | 45 Deg. Elbow LR Weight |

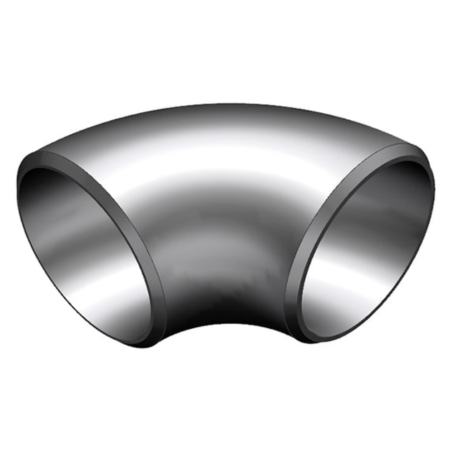

90 Deg. Elbow LR Centre to Face A | 90 Deg. Elbow LR Weight | 90 Deg. Elbow SR Centre to Face A | 90 Deg. Elbow SR Weight | ||
| mm | in | mm | mm | Schedule | mm | kg | mm | kg | mm | kg |
| 15 | 1/2” | 21.3 | 2.78 | STD | 15.9 | 0.04 | 38.1 | 0.08 | – | – |
| 3.73 | X.S | 15.9 | 0.05 | 38.1 | 0.10 | – | – | |||
| 20 | 3/4” | 26.7 | 2.87 | STD | 11.1 | 0.04 | 28.6 | 0.08 | – | – |
| 3.91 | X.S | 11.1 | 0.05 | 28.6 | 0.11 | – | – | |||
| 25 | 1” | 33.4 | 3.38 | STD | 22.2 | 0.09 | 38.1 | 0.15 | 25.4 | 0.11 |
| 4.55 | X.S | 22.2 | 0.11 | 38.1 | 0.19 | 25.4 | 0.14 | |||
| 32 | 11/4” | 42.2 | 3.56 | STD | 25.4 | 0.14 | 47.6 | 0.28 | 31.75 | 0.18 |
| 4.85 | X.S | 25.4 | 0.2 | 47.6 | 0.39 | 31.75 | 0.24 | |||
| 40 | 11/2” | 48.3 | 3.68 | STD | 28.6 | 0.2 | 57.1 | 0.4 | 38.1 | 0.26 |
| 5.08 | X.S | 28.6 | 0.25 | 57.1 | 0.5 | 38.1 | 0.35 | |||
| 50 | 2” | 60.3 | 3.91 | STD | 34.9 | 0.36 | 76.2 | 0.72 | 50.8 | 0.5 |
| 5.54 | X.S | 34.9 | 0.5 | 76.2 | 1.0 | 50.8 | 0.68 | |||
| 65 | 21/2” | 73.0 | 5.16 | STD | 44.4 | 0.73 | 95.2 | 1.46 | 63.5 | 0.95 |
| 7.01 | X.S | 44.4 | 0.91 | 95.2 | 1.82 | 63.5 | 1.27 | |||
| 80 | 3” | 88.9 | 5.49 | STD | 50.8 | 1.1 | 114.3 | 2.18 | 76.2 | 1.45 |
| 7.62 | X.S | 50.8 | 1.45 | 114.3 | 2.86 | 76.2 | 1.95 | |||
| 100 | 4” | 114.3 | 6.02 | STD | 63.5 | 2.1 | 152.4 | 4.2 | 101.6 | 2.8 |
| 8.56 | X.S | 63.5 | 2.9 | 152.4 | 5.7 | 101.6 | 3.9 | |||
| 125 | 5” | 141.3 | 6.65 | STD | 79.4 | 3.4 | 190.0 | 6.8 | 127.0 | 4.8 |
| 9.5 | X.S | 79.4 | 5.0 | 190.0 | 10.0 | 127.0 | 6.5 | |||
| 150 | 6” | 168.3 | 7.11 | STD | 95.2 | 5.1 | 229.0 | 10.1 | 152.4 | 6.8 |
| 10.97 | X.S | 95.2 | 7.7 | 229.0 | 15.3 | 152.4 | 10.2 | |||
| 200 | 8” | 219.1 | 8.18 | STD | 127.0 | 10.2 | 305.0 | 20.4 | 203.0 | 13.6 |
| 12.7 | X.S | 127.0 | 15.5 | 305.0 | 30.9 | 203.0 | 20.9 | |||
| 250 | 10” | 273.9 | 9.27 | STD | 159.0 | 18.1 | 381.0 | 36.1 | 254.0 | 24.1 |
| 12.7 | X.S | 159.0 | 24.4 | 381.0 | 48.8 | 254.0 | 32.5 | |||
| 300 | 12” | 323.9 | 9.52 | STD | 190.0 | 26.6 | 457.0 | 53.1 | 305.0 | 35.4 |
| 12.7 | X.S | 190.0 | 35.0 | 457.0 | 70.0 | 305.0 | 46.7 | |||
| 350 | 14” | 355.6 | 9.52 | STD | 222.0 | 34.1 | 533.0 | 68.1 | 356.0 | 45.4 |
| 12.7 | X.S | 222.0 | 45.0 | 533.0 | 90.0 | 356.0 | 60.0 | |||
| 400 | 16” | 406.4 | 9.52 | STD | 254.0 | 45.0 | 610.0 | 89.3 | 406.0 | 59.5 |
| 12.7 | X.S | 254.0 | 59.0 | 610.0 | 118.0 | 406.0 | 78.7 | |||
| 450 | 18” | 457.0 | 9.52 | STD | 286.0 | 56.5 | 686.0 | 113.0 | 457.0 | 75.6 |
| 12.7 | X.S | 286.0 | 75.0 | 686.0 | 150.0 | 457.0 | 100.0 | |||
| 500 | 20” | 508.0 | 9.52 | STD | 318.0 | 85.0 | 762.0 | 140.0 | 508.0 | 93.5 |
| 12.7 | X.S | 318.0 | 112.5 | 762.0 | 186.0 | 508.0 | 124.0 | |||
| 600 | 24” | 610.00 | 9.52 | STD | 381.0 | 101.5 | 914.0 | 203.0 | 610.0 | 135.0 |
| 12.7 | X.S | 381.0 | 134.5 | 914.0 | 269.0 | 610.0 | 179.0 | |||
Pipe Fittings Tolerance ASME B16.9

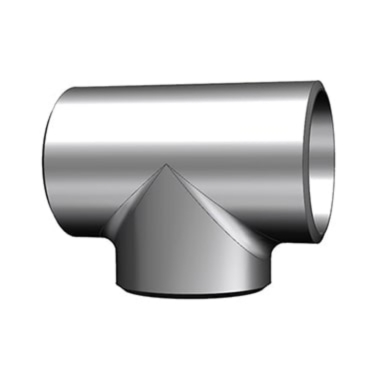

| Buttweld Fittings ASME B16.9 Tolerance (Elbow, Cap, Tee, Reducer) | 90 Deg. & 45 Deg. Elbow and Tee |

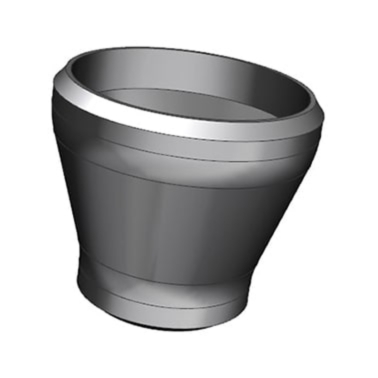

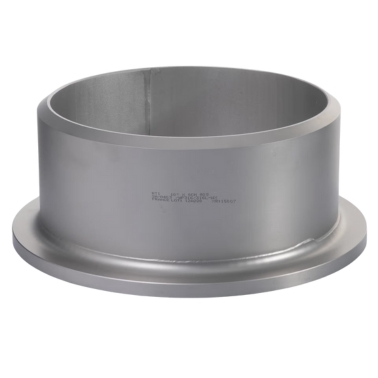

Pipe Reducer & Lap Joint Stub End |

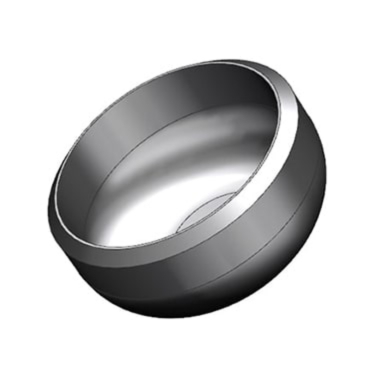

Pipe Cap | |||
| Buttweld Fitting Dimension (NPS) | Outside Diameter at Bevel |
Inside Diameter at End |
WallThickness T | Center-to-End Dimension A ,C ,B |
Over-all Length H |
Over-all Length F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Common Buttweld Pipe Fittings Standards
A comprehensive list of buttweld pipe fittings standards commonly used across industries like Oil & Gas, Petrochemical, Chemical, Power, and Water Treatment. These standards specify requirements for dimensions, materials, testing, and quality assurance.
- ASME Standards:
- ASME B16.9: Factory-Made Wrought Buttwelding Fittings.
- ASME B16.25: Buttwelding Ends (preparation of ends for welding).
- ASME Standards: Wrought Steel Buttwelding Short Radius Elbows and Returns.
- ASTM Standards:
- ASTM A234: Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High-Temperature Service.
- ASTM A403: Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings.
- ASTM A815: Standard Specification for Wrought Ferritic, Ferritic/Austenitic (Duplex), and Martensitic Stainless Steel Piping Fittings.
- ASTM A860: Standard Specification for High-Strength Low-Alloy Welded Fittings (commonly used in pipelines with high strength requirements).
- API Standards:
- API 5L: Specification for Line Pipe (not directly for fittings but related to pipe material in oil and gas industries).
- API 6A: Specification for Wellhead and Christmas Tree Equipment (covers piping components but specific to high-pressure environments in oil fields).
- MSS (Manufacturers Standardization Society) Standards:
- MSS SP-43: Wrought and Fabricated Butt-Welding Fittings for Low-Pressure, Corrosion Resistant Applications (commonly used for stainless steel in low-pressure applications).
- MSS SP-75: Specification for High-Strength Wrought, Butt-Welding Fittings (used in oil and gas for high-strength requirements).
- MSS SP-79: Socket-Welding Reducer Inserts.
- MSS SP-83: Carbon Steel Pipe Unions, Socket Welding, and Threaded.
- DIN (Deutsches Institut für Normung) Standards (European):
- DIN 2605: Steel Elbows for Butt Welding (elbows dimensions and tolerances).
- DIN 2615: Tees for Butt Welding.
- DIN 2616: Reducers for Butt Welding.
- DIN 2617: Caps for Butt Welding.
- EN (European Norms) Standards:
- EN 10253-1: Butt-Welding Pipe Fittings Made of Non-Alloy and Alloy Steels.
- EN 10253-2: Butt-Welding Pipe Fittings with Specified Elevated Temperature Properties.
- EN 10253-3: Butt-Welding Pipe Fittings Made of Austenitic and Austenitic-Ferritic (Duplex) Stainless Steel.
- EN 10253-4: Butt-Welding Pipe Fittings for Low-Pressure Applications.
- JIS (Japanese Industrial Standards):
- JIS B2311: Steel Pipe Fittings for Butt-Welding.
- JIS B2312: Cast Iron Pipe Fittings for Butt-Welding.
- JIS B2313: Malleable Iron Pipe Fittings for Butt-Welding.
- ISO (International Standards Organization) Standards:
- ISO 5251: Specifications for Butt-Welding Ends for Steel Pipe Fittings (compatible with ISO pipes and equipment globally).
- ISO 15590: Petroleum and Natural Gas Industries — Induction Bends, Fittings, and Flanges for Pipeline Transportation Systems.
- BS (British Standards):
- BS 1640: Steel Butt-Welding Pipe Fittings for the Petroleum Industry.
- BS 3799: Forged Fittings, Screwed, and Socket-Welding for the Petroleum Industry
Why Ample Alloys!
Our extensive inventory includes seamless and welded fittings, ready for immediate dispatch to meet urgent project requirements. Backed by a team of skilled professionals and state-of-the-art manufacturing facilities, Ample Alloys ensures reliable, durable, and cost-effective piping solutions for critical applications.
Quality Control System
Ensuring excellence through a rigorous Quality Control System that meets the highest industry standards.
100% Satisfaction Guarantee
Experience peace of mind with our 100% Satisfaction Guarantee, ensuring top-quality products and services that exceed your expectations.
Highly Professional Staff
Backed by a team of highly professional staff, we deliver exceptional service and expertise to meet your industry needs.
Accurate Testing Processes
Utilizing precise and accurate testing processes to ensure the highest quality and compliance with industry standards.
Buttweld pipe fittings are widely used in industries such as oil and gas, chemical processing, power generation, and water treatment. These fittings ensure strong, leak-proof connections, making them ideal for high-pressure and high-temperature environments. They are also essential in applications requiring corrosion resistance, like chemical transport or food and beverage production, ensuring safe and efficient flow within pipelines. Their versatility and durability make them a crucial component in various industrial piping systems.
Buttweld fittings provide strong, leak-proof connections that enhance the reliability of piping systems. Their smooth internal surfaces minimize pressure drops, improving flow efficiency. Available in various sizes and configurations, they offer flexibility for system design and expansion. These fittings are durable, cost-effective, and ideal for high-pressure, high-temperature applications.
Selecting the right buttweld fitting involves choosing the appropriate material (like Carbon Steel or Stainless Steel) to match your system’s pressure, temperature, and corrosion requirements. Ensure the fitting type aligns with your design needs—such as elbows for direction changes or tees for branching. Always check compliance with standards like ASME B16.9 and source from certified manufacturers to guarantee quality and durability.
