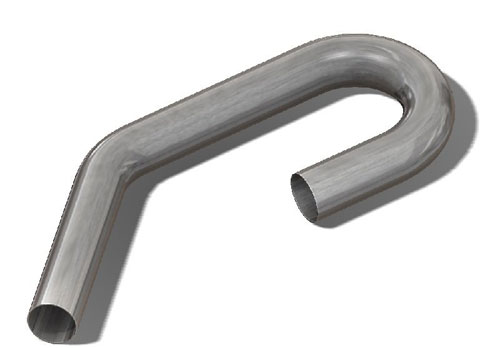

A J-pipe bend is a specialized pipe fitting designed to change the direction of flow in piping systems, typically creating a 90-degree turn with a smooth, gradual curve. Unlike sharp-angle fittings, the "J" shape allows for a more efficient flow, minimizing turbulence and pressure drop. This type of bend is often used in situations where there is a need to redirect the flow within a confined space or in systems where smooth flow is crucial.
The main reason for using J-pipe bends is their ability to reduce the strain on the pipe system. Traditional sharp-angle elbows can cause excessive stress, leading to pipe damage or increased wear over time. The smooth curve of the J-bend helps distribute the pressure more evenly, increasing the lifespan of the pipes and minimizing the potential for leaks or failures. J-pipe bends provide an efficient, durable, and space-saving solution for piping systems, making them an ideal choice in industries requiring high-flow efficiency, reduced wear, and space optimization.
Ample Alloys is a manufacturing J-pipe bends focus on customer satisfaction, product reliability, and timely delivery. We are committed to producing J-pipe bends that offer smooth flow, reduce pressure loss, and provide superior strength under high-pressure conditions. We also adhere to international standards and industry-specific codes, ensuring that each J-pipe bend meets the safety, operational, and environmental requirements of the application. Additionally, We offers customization options, allowing clients to request specific radii, sizes, and materials for their J-pipe bends, ensuring the perfect fit for their unique piping systems.
90-degree J pipe bend, Custom J pipe bends, J-pipe bend fittings, J pipe bends for piping systems, High-quality J pipe bends, Carbon steel J pipe bends, Stainless steel J pipe bends, J pipe bend welding, J pipe bend with smooth flow, Durable J pipe bend, Low-pressure J pipe bends, Long-lasting J pipe bends, Flexible J pipe bends, J pipe bend fabrication
J Pipe Bends Specifications
Size Range
1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Wall Thickness
Sch 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, XS, 100, 120, 140, 160, Sch XXS
Stainless Steel
ASTM A403 WP 304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.
Standards / Dimension
ASME B16.9, ASME B16.28, MSS SP-43, MSS SP-75, ASTM A234, ASTM A403, DIN 2605, 2615, 2616, 2617, 10253.
Type / Form
Seamless / ERW / Welded / Fabricated.
Alloy Steel
ASTM A234, WP1, WP5, WP9, WP11, WP22, WP91, etc.
Bending Radius
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Carbon Steel
ASTM A234, A420, MSS-SP-75, WPB, WPL3, WPL6, WPHY 42, WPHY 46, WPHY 52, WPHY 56, WPHY 60, WPHY 65, WPHY 70
Duplex & Super Duplex
ASTM A815 / A815M, UNS S31803 / 2205, UNS S32205, UNS S32101 / LDX 2101, UNS S32750 / 2507, UNS S32760, UNS S32550 / Ferralium 255.
Buttweld J Bends Dimensions
| Nominal Bore (NB) | Outside Diameter (OD) | Thickness (Sch. 40) | Bend Radius (R) | Angle |
|---|---|---|---|---|
| 1/8" | 0.405" | 0.065" | 1.5D | 90° |
| 1/4" | 0.540" | 0.085" | 1.5D | 90° |
| 1/2" | 0.840" | 0.109" | 1.5D | 90° |
| 3/4" | 1.050" | 0.113" | 1.5D | 90° |
| 1" | 1.315" | 0.140" | 1.5D | 90° |
| 1 1/4" | 1.660" | 0.140" | 1.5D | 90° |
| 1 1/2" | 1.900" | 0.145" | 1.5D | 90° |
| 2" | 2.375" | 0.154" | 1.5D | 90° |
| 2 1/2" | 2.875" | 0.203" | 1.5D | 90° |
| 3" | 3.500" | 0.216" | 1.5D | 90° |
| 4" | 4.500" | 0.237" | 1.5D | 90° |
| 6" | 6.625" | 0.280" | 1.5D | 90° |
| 8" | 8.625" | 0.322" | 1.5D | 90° |
| 10" | 10.750" | 0.365" | 1.5D | 90° |
| 12" | 12.750" | 0.406" | 1.5D | 90° |
| 14" | 14.000" | 0.438" | 1.5D | 90° |
| 16" | 16.000" | 0.500" | 1.5D | 90° |
| 18" | 18.000" | 0.562" | 1.5D | 90° |
| 20" | 20.000" | 0.625" | 1.5D | 90° |
| 24" | 24.000" | 0.750" | 1.5D | 90° |
| 30" | 30.000" | 0.875" | 1.5D | 90° |
| 36" | 36.000" | 1.000" | 1.5D | 90° |
| 42" | 42.000" | 1.125" | 1.5D | 90° |
| 48" | 48.000" | 1.250" | 1.5D | 90° |
Tolerance of J pipe Bends
| Dimension | Tolerance |
|---|---|
| Nominal Bore (NB) | ±1% of nominal size |
| Outside Diameter (OD) | ±1% of nominal size |
| Bend Radius (R) | ±5% of specified bend radius |
| Wall Thickness | ±12.5% of specified thickness |
| Angle of Bend | ±1° of specified angle |
| Centerline Radius | ±5% of the specified radius |
| Length of Tangent (L) | ±5% of specified tangent length |
| Thickness (t) | ±10% of the specified thickness |
| Out-of-Roundness | 1% maximum deviation from nominal OD |
High-quality J pipe bends - Standard Specifications
J-pipe bends are widely used in various industries, especially when a change in the direction of flow is required, such as in HVAC systems, oil and gas pipelines, and water treatment plants. These bends are manufactured to high standards to ensure reliable performance, durability, and efficient fluid flow. Below are the key specifications that typically define high-quality J-pipe bends:
- ASME Standards:
- ASME B16.9: Factory-Made Wrought Buttwelding Fittings.
- ASME B16.25: Buttwelding Ends (preparation of ends for welding).
- ASME Standards: Wrought Steel Buttwelding Short Radius Elbows and Returns.
- ASTM Standards:
- ASTM A234: Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High-Temperature Service.
- ASTM A403: Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings.
- ASTM A815: Standard Specification for Wrought Ferritic, Ferritic/Austenitic (Duplex), and Martensitic Stainless Steel Piping Fittings.
- ASTM A860: Standard Specification for High-Strength Low-Alloy Welded Fittings (commonly used in pipelines with high strength requirements).
- API Standards:
- API 5L: Specification for Line Pipe (not directly for fittings but related to pipe material in oil and gas industries).
- API 6A: Specification for Wellhead and Christmas Tree Equipment (covers piping components but specific to high-pressure environments in oil fields).
- MSS (Manufacturers Standardization Society) Standards:
- MSS SP-43: Wrought and Fabricated Butt-Welding Fittings for Low-Pressure, Corrosion Resistant Applications (commonly used for stainless steel in low-pressure applications).
- MSS SP-75: Specification for High-Strength Wrought, Butt-Welding Fittings (used in oil and gas for high-strength requirements).
- MSS SP-79: Socket-Welding Reducer Inserts.
- MSS SP-83: Carbon Steel Pipe Unions, Socket Welding, and Threaded.
- DIN (Deutsches Institut für Normung) Standards (European):
- DIN 2605: Steel Elbows for Butt Welding (elbows dimensions and tolerances).
- DIN 2615: Tees for Butt Welding.
- DIN 2616: Reducers for Butt Welding.
- DIN 2617: Caps for Butt Welding.
- EN (European Norms) Standards:
- EN 10253-1: Butt-Welding Pipe Fittings Made of Non-Alloy and Alloy Steels.
- EN 10253-2: Butt-Welding Pipe Fittings with Specified Elevated Temperature Properties.
- EN 10253-3: Butt-Welding Pipe Fittings Made of Austenitic and Austenitic-Ferritic (Duplex) Stainless Steel.
- EN 10253-4: Butt-Welding Pipe Fittings for Low-Pressure Applications.
- JIS (Japanese Industrial Standards):
- JIS B2311: Steel Pipe Fittings for Butt-Welding.
- JIS B2312: Cast Iron Pipe Fittings for Butt-Welding.
- JIS B2313: Malleable Iron Pipe Fittings for Butt-Welding.
- ISO (International Standards Organization) Standards:
- ISO 5251: Specifications for Butt-Welding Ends for Steel Pipe Fittings (compatible with ISO pipes and equipment globally).
- ISO 15590: Petroleum and Natural Gas Industries — Induction Bends, Fittings, and Flanges for Pipeline Transportation Systems.
- BS (British Standards):
- BS 1640: Steel Butt-Welding Pipe Fittings for the Petroleum Industry.
- BS 3799: Forged Fittings, Screwed, and Socket-Welding for the Petroleum Industry
Why Ample Alloys for Durable J pipe bend!
By choosing Ample Alloys for your J pipe bend needs, you benefit from a combination of exceptional quality, flexibility, and service that ensures the success of your projects. Whether you are looking for standard or custom bends, Ample Alloys is the name you can trust.
Highly Professional Staff
Backed by a team of highly professional staff, we deliver exceptional service and expertise to meet your industry needs.
100% Satisfaction Guarantee
Experience peace of mind with our 100% Satisfaction Guarantee, ensuring top-quality products and services that exceed your expectations.
Quality Control System
Ensuring excellence through a rigorous Quality Control System that meets the highest industry standards.
Accurate Testing Processes
Utilizing precise and accurate testing processes to ensure the highest quality and compliance with industry standards.
J pipe bends are used to change the direction of the pipeline in an efficient manner. They are commonly used in industries like oil and gas, water treatment, HVAC systems, and chemical processing. The "J" shape minimizes turbulence and enhances fluid flow, making them an ideal solution for systems with space constraints.
The bend radius for J pipe bends can vary based on the requirements of the piping system, but standard bend radii are typically 1.5D, 2D, or 3D (where "D" is the nominal diameter of the pipe). Custom bend radii can be manufactured based on project needs.
J pipe bends are fabricated using advanced methods such as hot induction bending, cold bending, or welding. These methods ensure precise dimensions, high strength, and smooth internal surfaces. The bends are produced to meet international standards like ASME B16.9 or ASME B16.28.
