ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 Buttweld 180° Elbow Manufacturer
A 180-degree elbow is used in piping systems to change the direction of flow by 180 degrees, enabling a full reversal of the flow path. It is commonly used in applications where pipes need to redirect in a completely opposite direction. 180-degree elbows are available in various materials, including stainless steel, carbon steel, alloy steel, nickel alloys, and monel. The material selection depends on factors like temperature, pressure, and the fluid being transported.
180 degree Short Radius (SR) elbows have a bend radius equal to the pipe diameter. They are ideal for tight spaces but can create more friction, resulting in higher pressure loss. 180 deg Long Radius (LR) elbows have a bend radius 1.5 times the pipe diameter, providing smoother flow and reducing pressure loss, making them suitable for most standard applications.
Ample Alloys is a trusted manufacturer and supplier of high-quality 180-degree elbows, With a commitment to precision and reliability, Ample Alloys provides 180-degree elbows in various schedules such as Schedule 10, Schedule 40, and Schedule 80, suitable for both low and high-pressure applications. These elbows are crafted to meet industry standards like ANSI B16.9 and ASME B16.9, ensuring optimal performance in critical piping systems across industries like oil and gas, chemical processing, and power generation.
Premium 180° Pipe Elbows, ANSI B16.9 180-Degree Fittings, Stainless Steel 180° Elbows, Schedule 10 180° Bend, A403 SS 180° Elbows, Carbon & Alloy Steel 180° Pipe Elbows, Buttweld 180° Elbow Fittings, ANSI B16.9 180° Pipe Bends
LR & SR 180° Pipe Elbow Specifications
Size Range
1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Wall Thickness
Sch 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, XS, 100, 120, 140, 160, Sch XXS
Stainless Steel
ASTM A403 WP 304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.
Standards / Dimension
ASME B16.9, ASME B16.28, MSS SP-43, MSS SP-75, ASTM A234, ASTM A403, DIN 2605, 2615, 2616, 2617, 10253.
Type / Form
Seamless, Welded, Fabricated / 180 Deg Long Radius Elbow, Short Radius Elbow.
Alloy Steel
ASTM A234, WP1, WP5, WP9, WP11, WP22, WP91, etc.
Bending Radius
R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Carbon Steel
ASTM A234, A420, MSS-SP-75, WPB, WPL3, WPL6, WPHY 42, WPHY 46, WPHY 52, WPHY 56, WPHY 60, WPHY 65, WPHY 70
Duplex & Super Duplex
ASTM A815 / A815M, UNS S31803 / 2205, UNS S32205, UNS S32101 / LDX 2101, UNS S32750 / 2507, UNS S32760, UNS S32550 / Ferralium 255.

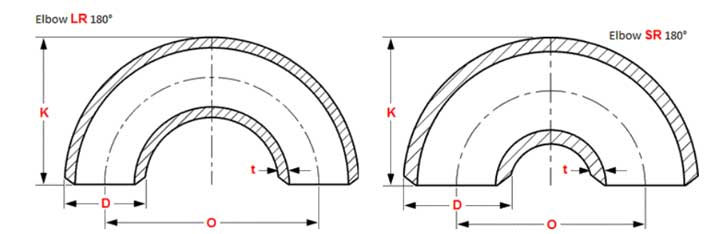

Buttweld 180 degree Elbow Dimensions
| Nominal Pipe Size (NPS) | Outside Diameter (OD) | Wall Thickness (t) | Center to End (O) | Centerline Radius (K) | Weight (kg) |
|---|---|---|---|---|---|
| 1/2" | 0.840" | 0.109" | 1.50" | 1.5 x OD | 0.1 |
| 3/4" | 1.050" | 0.113" | 2.00" | 1.5 x OD | 0.2 |
| 1" | 1.315" | 0.140" | 2.50" | 1.5 x OD | 0.3 |
| 1 1/4" | 1.660" | 0.140" | 3.00" | 1.5 x OD | 0.5 |
| 1 1/2" | 1.900" | 0.145" | 3.50" | 1.5 x OD | 0.6 |
| 2" | 2.375" | 0.154" | 4.00" | 1.5 x OD | 0.8 |
| 2 1/2" | 2.875" | 0.203" | 5.00" | 1.5 x OD | 1.2 |
| 3" | 3.500" | 0.216" | 6.00" | 1.5 x OD | 1.5 |
| 4" | 4.500" | 0.237" | 7.00" | 1.5 x OD | 2.2 |
| 5" | 5.563" | 0.258" | 8.00" | 1.5 x OD | 3.0 |
| 6" | 6.625" | 0.280" | 9.00" | 1.5 x OD | 4.0 |
| 8" | 8.625" | 0.322" | 11.00" | 1.5 x OD | 6.0 |
| 10" | 10.750" | 0.365" | 13.00" | 1.5 x OD | 8.0 |
| 12" | 12.750" | 0.406" | 15.00" | 1.5 x OD | 10.0 |
| 14" | 14.000" | 0.437" | 17.00" | 1.5 x OD | 12.0 |
| 16" | 16.000" | 0.500" | 19.00" | 1.5 x OD | 15.0 |
| 18" | 18.000" | 0.562" | 21.00" | 1.5 x OD | 18.0 |
| 20" | 20.000" | 0.625" | 23.00" | 1.5 x OD | 22.0 |
| 24" | 24.000" | 0.750" | 27.00" | 1.5 x OD | 30.0 |
Long Radius 180° Elbow Tolerance ASME B16.9
| Dimension | Tolerance |
|---|---|
| Outside Diameter (OD) | ±1/64 inch (±0.4 mm) for NPS 1/2" to 12" |
| Center to End (A) | ±1/8 inch (±3.2 mm) for NPS 1/2" to 4" |
| ±3/16 inch (±4.8 mm) for NPS 5" to 24" | |
| Wall Thickness (t) | ±12.5% of the specified wall thickness |
| Centerline Radius (R) | ±1/4 inch (±6.4 mm) for NPS 1/2" to 4" |
| ±1/2 inch (±12.7 mm) for NPS 5" to 24" |
Common Buttweld 180 degree Elbow Standards
A comprehensive list of 180° Elbow pipe fittings standards commonly used across industries like Oil & Gas, Petrochemical, Chemical, Power, and Water Treatment. These standards specify requirements for dimensions, materials, testing, and quality assurance.
- ASME Standards:
- ASME B16.9: Factory-Made Wrought Buttwelding Fittings.
- ASME B16.25: Buttwelding Ends (preparation of ends for welding).
- ASME Standards: Wrought Steel Buttwelding Short Radius Elbows and Returns.
- ASTM Standards:
- ASTM A234: Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High-Temperature Service.
- ASTM A403: Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings.
- ASTM A815: Standard Specification for Wrought Ferritic, Ferritic/Austenitic (Duplex), and Martensitic Stainless Steel Piping Fittings.
- ASTM A860: Standard Specification for High-Strength Low-Alloy Welded Fittings (commonly used in pipelines with high strength requirements).
- API Standards:
- API 5L: Specification for Line Pipe (not directly for fittings but related to pipe material in oil and gas industries).
- API 6A: Specification for Wellhead and Christmas Tree Equipment (covers piping components but specific to high-pressure environments in oil fields).
- MSS (Manufacturers Standardization Society) Standards:
- MSS SP-43: Wrought and Fabricated Butt-Welding Fittings for Low-Pressure, Corrosion Resistant Applications (commonly used for stainless steel in low-pressure applications).
- MSS SP-75: Specification for High-Strength Wrought, Butt-Welding Fittings (used in oil and gas for high-strength requirements).
- MSS SP-79: Socket-Welding Reducer Inserts.
- MSS SP-83: Carbon Steel Pipe Unions, Socket Welding, and Threaded.
- DIN (Deutsches Institut für Normung) Standards (European):
- DIN 2605: Steel Elbows for Butt Welding (elbows dimensions and tolerances).
- DIN 2615: Tees for Butt Welding.
- DIN 2616: Reducers for Butt Welding.
- DIN 2617: Caps for Butt Welding.
- EN (European Norms) Standards:
- EN 10253-1: Butt-Welding Pipe Fittings Made of Non-Alloy and Alloy Steels.
- EN 10253-2: Butt-Welding Pipe Fittings with Specified Elevated Temperature Properties.
- EN 10253-3: Butt-Welding Pipe Fittings Made of Austenitic and Austenitic-Ferritic (Duplex) Stainless Steel.
- EN 10253-4: Butt-Welding Pipe Fittings for Low-Pressure Applications.
- JIS (Japanese Industrial Standards):
- JIS B2311: Steel Pipe Fittings for Butt-Welding.
- JIS B2312: Cast Iron Pipe Fittings for Butt-Welding.
- JIS B2313: Malleable Iron Pipe Fittings for Butt-Welding.
- ISO (International Standards Organization) Standards:
- ISO 5251: Specifications for Butt-Welding Ends for Steel Pipe Fittings (compatible with ISO pipes and equipment globally).
- ISO 15590: Petroleum and Natural Gas Industries — Induction Bends, Fittings, and Flanges for Pipeline Transportation Systems.
- BS (British Standards):
- BS 1640: Steel Butt-Welding Pipe Fittings for the Petroleum Industry.
- BS 3799: Forged Fittings, Screwed, and Socket-Welding for the Petroleum Industry
Why Ample Alloys for Butt Weld 180 Degree Elbows!
Ample Alloys is a trusted manufacturer, stockist, and supplier of high-quality butt weld 180° elbows, offering a range of features that make us a preferred choice for industries worldwide.
Quality Control System
Ensuring excellence through a rigorous Quality Control System that meets the highest industry standards.
100% Satisfaction Guarantee
Experience peace of mind with our 100% Satisfaction Guarantee, ensuring top-quality products and services that exceed your expectations.
Highly Professional Staff
Backed by a team of highly professional staff, we deliver exceptional service and expertise to meet your industry needs.
Accurate Testing Processes
Utilizing precise and accurate testing processes to ensure the highest quality and compliance with industry standards.
180-degree elbows are available in various materials, including stainless steel, carbon steel, alloy steel, nickel alloys, and monel. The material selection depends on factors like temperature, pressure, and the fluid being transported.
180-degree elbows are available in various schedules, which determine the wall thickness and pressure rating of the elbow. The schedule selection plays a crucial role in determining the suitability of the elbow for different pressure, temperature, and flow conditions in a piping system.
Yes, custom sizes for 180-degree elbows are available to fit specific project requirements. Custom elbows can be made to different schedules, dimensions, and materials upon request.
