Socket Weld & Thredaed Hex Plug, Square Head Plug, Bull Plug Suppliers
A hex plug features a hexagonal head, making it easy to tighten or loosen using a wrench, ensuring a secure seal for pipe ends or threaded openings. Made from high-quality materials such as stainless steel, brass, or carbon steel, hex plugs are commonly used in plumbing, mechanical, and automotive systems.

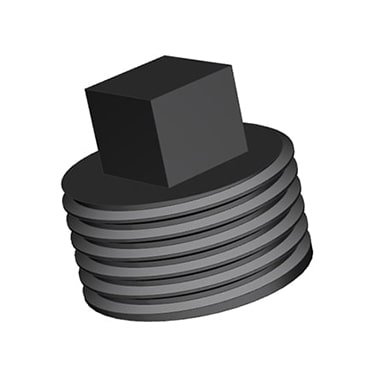

Square plugs, with their square-shaped heads, are ideal for applications requiring a secure seal that can be easily tightened or removed with a wrench or socket. These plugs are often used in industrial systems, including oil and gas pipelines, and offer robust sealing solutions, especially when space constraints make other plug types difficult to install.
Bull plugs, characterized by their large, round, and often heavy-duty design, are specifically designed to seal larger pipe openings. They are typically used in high-pressure systems and come in various materials to withstand tough environmental conditions, such as extreme temperatures and corrosive environments. Bull plugs provide a tight, reliable seal, ensuring system integrity and preventing leaks or contamination.
Dealing with Ample Alloys is straightforward and customer-centric. Our team is committed to understanding your specific requirements and ensuring that the products you receive meet your exact specifications. Whether you need standard or custom solutions, we work closely with you to provide the best materials, dimensions, and finishes. We offer timely delivery, competitive pricing, and unmatched customer service, making your experience seamless from order to fulfillment.
Hex Head Plug, Hexagon Head Plug, NPT Hex Plug, BSPT Hex Plug, Brass Hex Plug, Square Head Pipe Plug, Square Head Hex Plug, BSPT Square Head Plug, NPT Square Head Plug, Square Head Closure Plug, Bull Plug Threaded, NPT Bull Plug, BSPT Bull Plug, Bull Plug for Pipe, Bull Plug Closure, Bull Head Plug, Bull End Plug, Brass Bull Plug, Bull Plug for Pressure Systems, Heavy Duty Bull Plug
Industrial Hex Plug Specifications
Size Range
1/8″~4″ (DN6~DN100)
Form
Hex Plug, Square Plug, Bull Plug
Stainless Steel
ASTM A182 & ASME SA182 F 304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.
Standards / Dimension
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Carbon Steel
ASTM A105, ASME SA105, A105N, ASTM A350 LF2, ASME SA350, ASTM A694, ASME SA694
Alloy Steel
ASTM A182 & ASME SA182 - F1, F5, F9, F11, F12, F22, F91
Pressure Class
2000LBS, 3000LBS, 6000LBS, 9000LBS
Type
Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Duplex & Super Duplex
ASTM A182 / ASME SA182 - S31803, S32205, 2205, S32750, S32760, 2507.

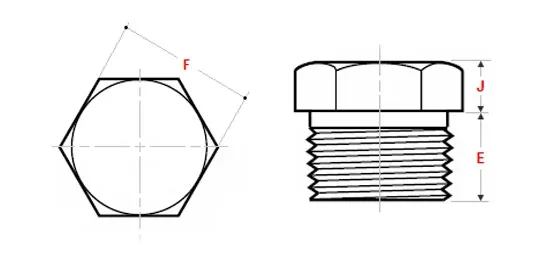

ASME B16.11 Threaded Hex Plug Dimensions
| NPS | Min Length E |
Min Hex Height J |
Nominal F |
|---|---|---|---|
| 1/2 | 14 | 8 | 22 |
| 3/4 | 16 | 10 | 27 |
| 1 | 19 | 10 | 35 |
| 1.1/4 | 21 | 14 | 44.5 |
| 1.1/2 | 21 | 16 | 51 |
| 2 | 22 | 18 | 63.5 |
| 2.1/2 | 27 | 19 | 76 |
| 3 | 28 | 21 | 89 |
| 4 | 32 | 25 | 117.5 |

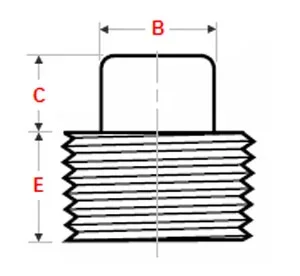

ASME B16.11 Threaded Square Head Plug Dimensions
| NPS | Min Length E |
Min Square Height C |
Min Width Flats B |
|---|---|---|---|
| 1/2 | 14 | 10 | 14 |
| 3/4 | 16 | 11 | 16 |
| 1 | 19 | 13 | 21 |
| 1.1/4 | 21 | 14 | 24 |
| 1.1/2 | 21 | 16 | 28 |
| 2 | 22 | 18 | 32 |
| 2.1/2 | 27 | 19 | 36 |
| 3 | 28 | 21 | 41 |
| 4 | 32 | 25 | 65 |

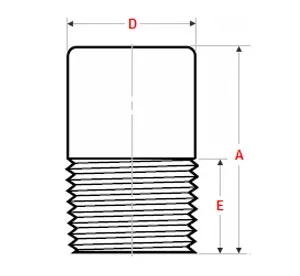

ASME B16.11 Threaded Round Head Plug Dimensions
| NPS | Min Length A |
Nominal Head Dia D |
Min Length E |
|---|---|---|---|
| 1/2 | 44 | 21 | 14 |
| 3/4 | 44 | 27 | 16 |
| 1 | 51 | 33 | 19 |
| 1.1/4 | 51 | 43 | 21 |
| 1.1/2 | 51 | 48 | 21 |
| 2 | 64 | 60 | 22 |
| 2.1/2 | 70 | 73 | 37 |
| 3 | 70 | 89 | 28 |
| 4 | 76 | 114 | 32 |
Forged Plugs Standards
Adhering to these standards ensures that forged plugs provide the reliability and performance needed in various industries, from oil and gas to chemical processing and plumbing systems.
- ASME Standards (American Standards):
- ASME B16.11: Covers forged fittings such as socket weld and threaded fittings for high-pressure applications.
- ASTM A105: Specifies carbon steel forgings for piping components.
- ASTM A182: Standard for forged or rolled alloy and stainless steel materials for high-temperature service.
- ASTM A350: Covers low-alloy and carbon steel forgings for low-temperature applications.
- MSS-SP-79: Socket weld fittings with enhanced dimensions and tolerances.
- MSS-SP-83: Threaded and socket weld unions for the petroleum industry.
- EN (European Standards):
- EN 10222: Forged steel fittings for pressure purposes.
- EN 10241: Steel threaded pipe fittings for the European market.
- EN ISO 17292: Specifications for fittings used in valve systems.
- JIS (Japanese Standards) :
- JIS B2316: Covers forged steel pipe fittings such as elbows, tees, and reducers.
- JIS G3454/G3455: Pressure-resistant pipe materials for fittings.
- International Standards:
- DIN 2605: German standard for forged fittings, particularly elbows.
- BS 3799: British standard for forged pipe fittings in threaded and socket weld types.
- GOST 17375: Russian standard for forged fittings used in high-pressure piping.
- Common Testing Standards:
- ASME B31.3: Testing requirements for process piping.
- NACE MR0175/ISO 15156: Compliance for materials in sour gas environments.
- API 598: Valve and fitting inspection standards.
Why Ample Alloys For Threaded Plugs!
At Ample Alloys, We pride ourselves on being a trusted supplier of high-quality threaded plugs designed for a wide range of industrial applications. Here’s why Ample Alloys should be your preferred choice for threaded plugs:
Superior Quality and Durability
Our threaded plugs are manufactured to the highest industry standards, ensuring that they deliver exceptional strength, durability, and reliability. We use only the finest materials, With Ample Alloys, you can count on products that withstand harsh environments and maintain optimal performance.
Wide Range of Materials and Sizes
We offer a diverse selection of threaded plugs, available in various materials and sizes to meet the specific requirements of different applications. Our large inventory ensures that we can quickly supply the right product for your needs, whether standard or custom.
Custom Solutions
At Ample Alloys, we understand that every project is unique. That’s why we offer custom threading and sizing options to ensure a perfect fit for your piping systems. Our expert team works closely with you to develop tailored solutions that meet your exact specifications, making us a reliable partner for your specialized needs.
Commitment to Timely Delivery
We prioritize fast and reliable delivery to ensure your projects stay on track. With our robust supply chain, we ensure that your threaded plugs arrive on time, whether you’re placing a small or large order.
- Hex Plugs: Feature a hexagonal shape for easy installation with a wrench.
- Square Head Plugs: Have a square-shaped head designed for high torque applications.
- Bull Plugs: Typically larger in size, with a rounded or conical shape, designed for use in high-pressure systems and flanged connections.
These plugs are made from a variety of materials, including carbon steel, stainless steel, alloy steel, brass, and bronze. The material selected depends on factors like corrosion resistance, temperature tolerance, and the specific requirements of the piping system or equipment.
Yes, all three types of plugs—Hex, Square Head, and Bull plugs—can be used in high-pressure systems, provided they are made from materials rated for such applications. Bull Plugs are particularly popular in high-pressure environments due to their larger size and ability to provide a more secure seal.
