Socket weld Equal Cross, Unequal Cross Forged Fittings Exporter

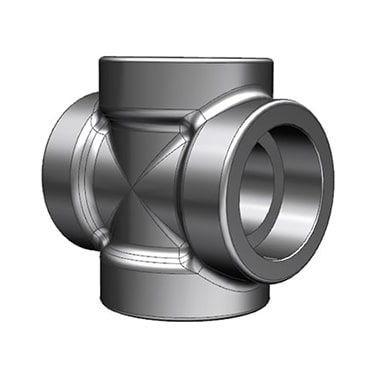

A Socket Weld Equal Cross is designed to create a four-way connection where all pipe outlets are of the same size. This fitting is commonly used in high-pressure systems where a strong, leak-proof connection is critical. The socket weld connection involves inserting the pipe into the fitting socket and securing it with a weld, ensuring a durable and permanent joint.
A Socket Weld Unequal Cross features one or more outlets of a smaller size than the main run, allowing for a change in pipe diameter while maintaining the integrity of the system. Similar to the equal cross, the socket weld connection provides a strong, leak-proof seal by welding the pipe into the fitting socket.
A Threaded Equal Cross is a pipe fitting designed to create a four-way connection where all the outlets are of the same size. This fitting features threaded connections, which means the pipe ends are screwed into the cross fitting, making installation easy and eliminating the need for welding.
A Threaded Unequal Cross features one or more outlets that are smaller than the main run, allowing for a change in pipe diameter while maintaining a secure connection. Like the equal cross, the threaded design means that the pipe is screwed into the cross fitting, offering ease of installation and maintenance.
Ample Alloys is a trusted supplier for Threaded and Socket Weld Equal and Unequal Crosses, offering high-quality products that meet industry standards. With expertise in sourcing and providing premium materials. commitment to quality and customer satisfaction makes them a preferred choice for industries such as oil & gas, chemical processing, and power generation. Whether for high-pressure or low-pressure applications, Ample Alloys delivers products that guarantee seamless performance and long-lasting results.
Customized forged equal and unequal cross, Threaded Equal Cross, Unequal Threaded cross for chemical industry, Forged steel cross fitting, Forged cross for oil and gas applications
Socket Weld Cross Specifications
Size Range
1/8″~4″ (DN6~DN100) (Socketweld & Screwed-Threaded)
Form
Equal Cross, Unequal Cross
Stainless Steel
ASTM A182 & ASME SA182 F 304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.
Standards / Dimension
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Carbon Steel
ASTM A105, ASME SA105, A105N, ASTM A350 LF2, ASME SA350, ASTM A694, ASME SA694
Alloy Steel
ASTM A182 & ASME SA182 - F1, F5, F9, F11, F12, F22, F91.
Pressure Class
Threaded -2000lb/ 3000lb/ 6000lbs, Socket-weld -3000/ 6000/ 9000lbs
Type
Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSPT, BSPP, EN 10204 3.1 and EN 10204 3.2 - NACE
Duplex & Super Duplex
ASTM A182 / ASME SA182 - S31803, S32205, 2205, S32750, S32760, 2507.
ASME B16.11 Threaded Cross (NPS 1/2 to 4, Class 2000)
| NPS | Min Length of Thread | Outside Dia of Band D |
Center to End A |
Min WT |
|
|---|---|---|---|---|---|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1.1/4 | 17 | 18 | 56 | 44 | 3.89 |
| 1.1/2 | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2.1/2 | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
Threaded Cross - ASME B16.11 (NPS 1/2 to 4, Class 6000)
| NPS | Min Length of Thread | Outside Dia of Band D |
Center to End A |
Min WT |
|
|---|---|---|---|---|---|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
| 3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
| 1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
| 1.1/4 | 17 | 18 | 75 | 60 | 10.59 |
| 1.1/2 | 17.8 | 18.4 | 84 | 64 | 11.07 |
| 2 | 19 | 19.2 | 102 | 83 | 12.09 |
| 2.1/2 | 23.6 | 28.9 | 121 | 95 | 15.29 |
| 3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
| 4 | 27.7 | 33 | 152 | 114 | 18.67 |
ASME B16.11 Socket Weld Cross - (NPS 1/2 to 4, Class 3000)
| NPS | Socket Bore | Depth Socket | Bore dia |
|---|---|---|---|
| B | J | D | |
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
| 1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
| 1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
| 2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
| NPS | Socket WT |
Body WT |
Center to bottom of socket |
| C | G | A | |
| 1/2 | 4.65 4.10 |
3.75 | 15.5 |
| 3/4 | 4.90 4.25 |
3.90 | 19.5 |
| 1 | 5.70 5.00 |
4.55 | 22 |
| 1.1/4 | 6.05 5.30 |
4.85 | 27 |
| 1.1/2 | 6.35 5.55 |
5.10 | 32 |
| 2 | 6.95 6.05 |
5.55 | 38 |
| 2.1/2 | 8.75 7.65 |
7.00 | 41.5 |
| 3 | 9.50 8.30 |
7.60 | 57.5 |
| 4 | 10.70 9.35 |
8.55 | 66.5 |
Socket Weld Cross - (NPS 1/2 to 4, Class 6000)
| NPS | Socket Bore | Depth Socket | Bore dia |
|---|---|---|---|
| B | J | D | |
| 1/2 | 21.95 21.70 |
10 | 12.5 11 |
| 3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
| 1 | 34.05 33.80 |
13 | 21.5 19.9 |
| 1.1/4 | 42.80 42.55 |
13 | 30.2 28.7 |
| 1.1/2 | 48.90 48.65 |
13 | 34.7 33.2 |
| 2 | 61.35 61.10 |
16 | 43.6 42.1 |
| NPS | Socket WT |
Body WT |
Center to bottom of socket |
| C | G | A | |
| 1/2 | 5.95 5.20 |
4.80 | 19.5 |
| 3/4 | 6.95 6.05 |
5.55 | 22.5 |
| 1 | 7.90 6.95 |
6.35 | 27 |
| 1.1/4 | 7.90 6.95 |
6.35 | 32 |
| 1.1/2 | 8.90 7.80 |
7.15 | 38 |
| 2 | 10.90 9.50 |
8.75 | 41 |
ANSI/ASME Forged Cross Fittings Standards
ANSI/ASME forged cross fittings are manufactured to specific industry standards to ensure safety, performance, and reliability in various piping systems. These fittings are designed to provide a secure four-way connection, commonly used to branch off one pipeline into multiple directions.
- ASME Standards (American Standards):
- ASME B16.11: Covers forged fittings such as socket weld and threaded fittings for high-pressure applications.
- ASTM A105: Specifies carbon steel forgings for piping components.
- ASTM A182: Standard for forged or rolled alloy and stainless steel materials for high-temperature service.
- ASTM A350: Covers low-alloy and carbon steel forgings for low-temperature applications.
- MSS-SP-79: Socket weld fittings with enhanced dimensions and tolerances.
- MSS-SP-83: Threaded and socket weld unions for the petroleum industry.
- EN (European Standards):
- EN 10222: Forged steel fittings for pressure purposes.
- EN 10241: Steel threaded pipe fittings for the European market.
- EN ISO 17292: Specifications for fittings used in valve systems.
- JIS (Japanese Standards) :
- JIS B2316: Covers forged steel pipe fittings such as elbows, tees, and reducers.
- JIS G3454/G3455: Pressure-resistant pipe materials for fittings.
- International Standards:
- DIN 2605: German standard for forged fittings, particularly elbows.
- BS 3799: British standard for forged pipe fittings in threaded and socket weld types.
- GOST 17375: Russian standard for forged fittings used in high-pressure piping.
- Common Testing Standards:
- ASME B31.3: Testing requirements for process piping.
- NACE MR0175/ISO 15156: Compliance for materials in sour gas environments.
- API 598: Valve and fitting inspection standards.
Why Ample Alloys For Threaded Cross - ASME B16.11!
Ample Alloys is a trusted name in supplying Threaded Cross Fittings manufactured to meet the stringent ASME B16.11 standards. With an unwavering commitment to quality, We ensures that each threaded cross fitting is crafted using the highest-grade materials. We offers reliable solutions that deliver secure, long-lasting connections.
Superior Quality
All products from Ample Alloys meet or exceed ASME B16.11 specifications, ensuring excellent performance and safety for high-pressure and high-temperature applications.
Wide Range of Materials
Ample Alloys offers threaded cross fittings made from premium materials like stainless steel, carbon steel, and alloy steels, providing options for a variety of application requirements.
Customization Options
Whether you need equal or unequal threaded cross fittings, Ample Alloys offers customization to suit the specific dimensions and pressures of your system.
Reliable Performance
Ample Alloys’ threaded cross fittings are designed to withstand extreme pressure conditions and harsh environments, ensuring they deliver superior performance and a secure connection in your piping systems.
- Socket Weld Crosses involve welding the pipes into the socket of the fitting, providing a stronger and more permanent seal, typically used in high-pressure systems.
- Threaded Crosses involve screwing the pipes into the fitting, offering ease of installation and disassembly, ideal for low-pressure systems or systems requiring frequent adjustments.
Yes, both Socket Weld and Threaded Cross Fittings can be made from high-temperature-resistant materials, such as stainless steel and alloy steels, making them suitable for high-temperature applications in industries like power generation and chemical processing.
Yes, Ample Alloys offers custom-made Socket Weld and Threaded Cross Fittings to meet specific requirements, including special material types, dimensions, and pressure ratings. Contact the supplier for custom fitting options based on your piping system's needs.
