Forged Threaded End Cap Fittings Stockists| MSS SP-79, 83, 95, 97, BS 3799
ASME B16.11 Forged End Caps are essential components for securely closing and sealing the ends of pipes in high-pressure systems. Socket weld end caps are designed to be welded onto the pipe, providing a permanent, leak-proof seal ideal for high-pressure and high-temperature applications. The pipe is inserted into the cap's socket and welded to create a secure joint.
Threaded end caps feature threads on the inside that allow for easy screwing onto the pipe, making them perfect for low-pressure systems or applications where disassembly is required. Whether you need a permanent, secure closure or a removable option, socket weld and threaded end caps provide reliable solutions for pipe end protection.
Ample Alloys excels in providing high-quality ASME B16.11 Forged Threaded End Caps tailored to meet the most demanding industrial applications. With a focus on precision and durability, We ensures that every end cap is manufactured to the highest standards, adhering to ASME B16.11 specifications for reliable, leak-proof pipe end closures. Whether it's a socket weld end cap for high-pressure systems or a threaded end cap for easier installation and removal, Ample Alloys delivers products with exceptional consistency and reliability. Our end caps are rigorously tested for quality assurance, ensuring each piece offers optimal performance in critical applications across industries.
High-Pressure Socket Weld End Pipe Cap, Threaded Pipe End Caps, Leak-proof Socket Weld End Caps, End Caps for Pipe Protection ASME B16.11, Custom Socket Weld End Caps, Leak-tight Forged End Caps
Forged End Pipe Cap Specifications
Size Range
1/8″~4″ (DN6~DN100)
Form
End Pipe Cap.
Stainless Steel
ASTM A182 & ASME SA182 F 304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.
Standards / Dimension
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Carbon Steel
ASTM A105, ASME SA105, A105N, ASTM A350 LF2, ASME SA350, ASTM A694, ASME SA694
Alloy Steel
ASTM A182 & ASME SA182 - F1, F5, F9, F11, F12, F22, F91
Pressure Class
2000LBS, 3000LBS, 6000LBS, 9000LBS
Type
Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Duplex & Super Duplex
ASTM A182 / ASME SA182 - S31803, S32205, 2205, S32750, S32760, 2507.

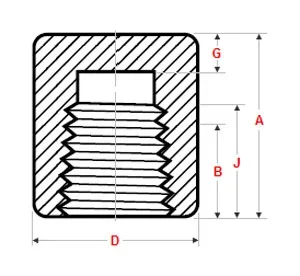

ASME B16.11 Threaded End Caps (NPS 1/2 to 4, Class 3000)
| NPS | Length | Outside Dia | Min WT | Min Thread Length | |
|---|---|---|---|---|---|
| A | D | G | B | J | |
| 1/2 | 32 | 28 | 6.4 | 10.9 | 13.6 |
| 3/4 | 37 | 35. | 6.4 | 12.7 | 13.9 |
| 1 | 41 | 44 | 9.7 | 14.7 | 17.3 |
| 1.1/4 | 44 | 57 | 9.7 | 17 | 18 |
| 1.1/2 | 44 | 64 | 11.2 | 17.8 | 18.4 |
| 2 | 48 | 76 | 12.7 | 19 | 19.2 |
| 2.1/2 | 60 | 92 | 15.7 | 23.6 | 28.9 |
| 3 | 65 | 108 | 19 | 25.9 | 30.5 |
| 4 | 68 | 140 | 22.4 | 27.7 | 33 |
Threaded End Caps (NPS 1/2 to 4, Class 6000)
| NPS | Length | Outside Dia | Min WT | Min Thread Length | |
|---|---|---|---|---|---|
| A | D | G | B | J | |
| 1/2 | 33 | 38 | 7.9 | 10.9 | 13.6 |
| 3/4 | 38 | 44 | 7.9 | 12.7 | 13.9 |
| 1 | 43 | 57 | 11.2 | 14.7 | 17.3 |
| 1.1/4 | 46 | 64 | 11.2 | 17 | 18 |
| 1.1/2 | 48 | 76 | 12.7 | 17.8 | 18.4 |
| 2 | 51 | 92 | 15.7 | 19 | 19.2 |
| 2.1/2 | 64 | 108 | 19 | 23.6 | 28.9 |
| 3 | 68 | 127 | 22.4 | 25.9 | 30.5 |
| 4 | 75 | 159 | 28.4 | 27.7 | 33 |

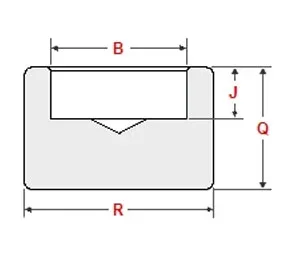

ASME B16.11 Socket Weld End Caps (NPS 1/2 to 4, Class 3000)
| NPS | Socket Bore | Depth Socket | Length Cap | Dia Cap |
|---|---|---|---|---|
| B | J | Q | R | |
| 1/2 | 21.95 21.70 |
10 | 19 | 32 |
| 3/4 | 27.30 27.05 |
13 | 23 | 38 |
| 1 | 34.05 33.80 |
13 | 26 | 45 |
| 1.1/4 | 42.80 42.55 |
13 | 28 | 55 |
| 1.1/2 | 48.90 48.65 |
13 | 30 | 65 |
| 2 | 61.35 61.10 |
16 | 36 | 75 |
| 2.1/2 | 74.20 73.80 |
16 | 38 | 92 |
| 3 | 90.15 89.80 |
16 | 42 | 110 |
| 4 | 115.80 115.45 |
19 | 48 | 140 |
Socket Weld End Caps (NPS 1/2 to 4, Class 6000)
| NPS | Socket Bore | Depth Socket | Length Cap | Dia Cap |
|---|---|---|---|---|
| B | J | Q | R | |
| 1/2 | 21.95 21.70 |
10 | 22 | 34 |
| 3/4 | 27.30 27.05 |
13 | 26 | 41 |
| 1 | 34.05 33.80 |
13 | 28 | 50 |
| 1.1/4 | 42.80 42.55 |
13 | 30 | 58 |
| 1.1/2 | 48.90 48.65 |
13 | 32 | 66.5 |
| 2 | 61.35 61.10 |
16 | 38 | 85 |
End Cap - Forged Fittings Standards
These standards ensure that end caps meet the necessary performance characteristics, including pressure containment, leak prevention, and durability under harsh conditions. Following these standards helps manufacturers produce forged end caps that are compatible with various pipe sizes, pressures, and materials, serving industries like oil & gas, chemical processing, and power generation.
- ASME Standards (American Standards):
- ASME B16.11: Covers forged fittings such as socket weld and threaded fittings for high-pressure applications.
- ASTM A105: Specifies carbon steel forgings for piping components.
- ASTM A182: Standard for forged or rolled alloy and stainless steel materials for high-temperature service.
- ASTM A350: Covers low-alloy and carbon steel forgings for low-temperature applications.
- MSS-SP-79: Socket weld fittings with enhanced dimensions and tolerances.
- MSS-SP-83: Threaded and socket weld unions for the petroleum industry.
- EN (European Standards):
- EN 10222: Forged steel fittings for pressure purposes.
- EN 10241: Steel threaded pipe fittings for the European market.
- EN ISO 17292: Specifications for fittings used in valve systems.
- JIS (Japanese Standards) :
- JIS B2316: Covers forged steel pipe fittings such as elbows, tees, and reducers.
- JIS G3454/G3455: Pressure-resistant pipe materials for fittings.
- International Standards:
- DIN 2605: German standard for forged fittings, particularly elbows.
- BS 3799: British standard for forged pipe fittings in threaded and socket weld types.
- GOST 17375: Russian standard for forged fittings used in high-pressure piping.
- Common Testing Standards:
- ASME B31.3: Testing requirements for process piping.
- NACE MR0175/ISO 15156: Compliance for materials in sour gas environments.
- API 598: Valve and fitting inspection standards.
Why Ample Alloys For Forged Pipe Cap!
Ample Alloys stands out as a trusted supplier of forged pipe caps, offering high-quality products that meet the most stringent industry standards.
Customization and Versatility
Ample Alloys offers a wide range of socket weld and threaded pipe caps, designed for various pipe sizes and materials.
Premium Quality Materials
Offers a wide range of materials, including stainless steel, carbon steel, and alloy steel, suitable for various industries and applications.
Reliable Performance
Known for their robust and reliable fittings, Ample Alloys' forged pipe caps are designed to handle demanding industrial applications, ensuring your systems stay safe and efficient.
Quality Assurance
Every product undergoes rigorous testing and quality checks to meet the highest industry standards, ensuring you receive a product that performs reliably over time.
- Socket Weld Pipe Caps are welded onto the pipe, creating a permanent and leak-tight seal.
- Threaded Pipe Caps screw onto the pipe, allowing for easy removal and reinstallation, making them ideal for low-pressure systems or maintenance applications.
Forged pipe caps are used in various industries, including oil & gas, chemical processing, power generation, and water treatment. These industries require reliable and high-quality fittings for high-pressure and high-temperature environments.
The advantages of using forged pipe caps include superior strength, durability, resistance to extreme temperatures and pressures, and long-lasting performance in demanding environments. Their secure fit prevents leaks and ensures system integrity.
