Forged Socket Weld Reducing Tee, Lateral Tee, Unequal Tee Fittings Supplier

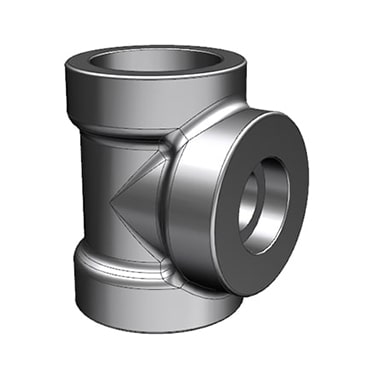

Socket Weld and Threaded Tees are crucial forged fittings used in piping systems to connect three pipe sections, ensuring efficient flow distribution or direction. The Socket Weld Equal Tee is designed for high-pressure applications, featuring three outlets of the same size and providing a secure, leak-proof connection through welding. &, the Threaded Equal Tee offers a versatile option for lower-pressure systems, with threaded connections for ease of installation and maintenance.
The Socket Weld Reducing Tee provides a robust, leak-proof connection through a welded joint, making it suitable for high-pressure and high-temperature applications. On the other hand, the Threaded Reducing Tee offers ease of assembly and disassembly, making it a practical choice for systems requiring regular maintenance or modifications.
The Socket Weld Lateral Tee and Threaded Lateral Tee feature a 45-degree branch, often used for directional changes or when smoother flow transitions are required. These tees are manufactured to standards such as ASME B16.11, ensuring precision and durability. Made from materials like stainless steel, carbon steel, and alloy steel, they are widely used in industries such as oil and gas, petrochemical, power generation, and chemical processing, delivering reliable performance in demanding conditions.
Ample Alloys plays a key role in providing high-quality forged tees, including socket weld, threaded, equal, reducing, and lateral tees. With a strong commitment to manufacturing precision-engineered fittings, Their extensive experience in the industry enables them to meet international standards such as ASME B16.11 and provide tailored solutions for a wide range of applications across sectors like oil and gas, petrochemical, chemical processing, and power generation. We works closely with clients to understand the unique requirements of each project, ensuring that the forged tees are manufactured to the correct specifications and can withstand the demands of high-pressure, high-temperature systems.
ISO certified Threaded Equal Tee, equal socket weld tee, threaded unequal tee, Reducing socket weld tee, Reducing threaded tee, MSS-SP-97 Lateral socket tee, SW reducing tee, SW tee fittings
Forged equal/unequal tees Specifications
Size Range
1/8″~4″ (DN6~DN100) (Socketweld & Screwed-Threaded)
Form
Equal Tee, Unequal Tee, Lateral Tee, Reducing Tee
Stainless Steel
ASTM A182 & ASME SA182 F 304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.
Standards / Dimension
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Carbon Steel
ASTM A105, ASME SA105, A105N, ASTM A350 LF2, ASME SA350, ASTM A694, ASME SA694
Alloy Steel
ASTM A182 & ASME SA182 - F1, F5, F9, F11, F12, F22, F91
Pressure Class
Threaded -2000lb/ 3000lb/ 6000lbs, Socket-weld -3000/ 6000/ 9000lbs
Type
Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSPT, BSPP, EN 10204 3.1 and EN 10204 3.2 - NACE
Duplex & Super Duplex
ASTM A182 / ASME SA182 - S31803, S32205, 2205, S32750, S32760, 2507.
ASME B16.11 Threaded Tees (NPS 1/2 to 4, Class 2000)
| NPS | Min Length of Thread | Outside Dia of Band D |
Center to End A |
Min WT |
|
|---|---|---|---|---|---|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1.1/4 | 17 | 18 | 56 | 44 | 3.89 |
| 1.1/2 | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2.1/2 | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
Threaded Tees - ASME B16.11 (NPS 1/2 to 4, Class 6000)
| NPS | Min Length of Thread | Outside Dia of Band D |
Center to End A |
Min WT |
|
|---|---|---|---|---|---|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 46 | 38 | 8.15 |
| 3/4 | 12.7 | 13.9 | 56 | 44 | 8.53 |
| 1 | 14.7 | 17.3 | 62 | 51 | 9.93 |
| 1.1/4 | 17 | 18 | 75 | 60 | 10.59 |
| 1.1/2 | 17.8 | 18.4 | 84 | 64 | 11.07 |
| 2 | 19 | 19.2 | 102 | 83 | 12.09 |
| 2.1/2 | 23.6 | 28.9 | 121 | 95 | 15.29 |
| 3 | 25.9 | 30.5 | 146 | 106 | 16.64 |
| 4 | 27.7 | 33 | 152 | 114 | 18.67 |
ASME B16.11 Socket Weld Tee - (NPS 1/2 to 4, Class 3000)
| NPS | Socket Bore | Depth Socket | Bore dia |
|---|---|---|---|
| B | J | D | |
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
| 1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
| 1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
| 2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
| NPS | Socket WT |
Body WT |
Center to bottom of socket |
| C | G | A | |
| 1/2 | 4.65 4.10 |
3.75 | 15.5 |
| 3/4 | 4.90 4.25 |
3.90 | 19.5 |
| 1 | 5.70 5.00 |
4.55 | 22 |
| 1.1/4 | 6.05 5.30 |
4.85 | 27 |
| 1.1/2 | 6.35 5.55 |
5.10 | 32 |
| 2 | 6.95 6.05 |
5.55 | 38 |
| 2.1/2 | 8.75 7.65 |
7.00 | 41.5 |
| 3 | 9.50 8.30 |
7.60 | 57.5 |
| 4 | 10.70 9.35 |
8.55 | 66.5 |
Socket Weld Tee - (NPS 1/2 to 4, Class 6000)
| NPS | Socket Bore | Depth Socket | Bore dia |
|---|---|---|---|
| B | J | D | |
| 1/2 | 21.95 21.70 |
10 | 12.5 11 |
| 3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
| 1 | 34.05 33.80 |
13 | 21.5 19.9 |
| 1.1/4 | 42.80 42.55 |
13 | 30.2 28.7 |
| 1.1/2 | 48.90 48.65 |
13 | 34.7 33.2 |
| 2 | 61.35 61.10 |
16 | 43.6 42.1 |
| NPS | Socket WT |
Body WT |
Center to bottom of socket |
| C | G | A | |
| 1/2 | 5.95 5.20 |
4.80 | 19.5 |
| 3/4 | 6.95 6.05 |
5.55 | 22.5 |
| 1 | 7.90 6.95 |
6.35 | 27 |
| 1.1/4 | 7.90 6.95 |
6.35 | 32 |
| 1.1/2 | 8.90 7.80 |
7.15 | 38 |
| 2 | 10.90 9.50 |
8.75 | 41 |
Lateral Tee - Forged Fittings Standards
These Lateral Tee fittings follow specific forged fitting standards to ensure durability, strength, and performance across various industries, including oil and gas, petrochemical, power generation, and chemical processing.
- ASME Standards (American Standards):
- ASME B16.11: Covers forged fittings such as socket weld and threaded fittings for high-pressure applications.
- ASTM A105: Specifies carbon steel forgings for piping components.
- ASTM A182: Standard for forged or rolled alloy and stainless steel materials for high-temperature service.
- ASTM A350: Covers low-alloy and carbon steel forgings for low-temperature applications.
- MSS-SP-79: Socket weld fittings with enhanced dimensions and tolerances.
- MSS-SP-83: Threaded and socket weld unions for the petroleum industry.
- EN (European Standards):
- EN 10222: Forged steel fittings for pressure purposes.
- EN 10241: Steel threaded pipe fittings for the European market.
- EN ISO 17292: Specifications for fittings used in valve systems.
- JIS (Japanese Standards) :
- JIS B2316: Covers forged steel pipe fittings such as elbows, tees, and reducers.
- JIS G3454/G3455: Pressure-resistant pipe materials for fittings.
- International Standards:
- DIN 2605: German standard for forged fittings, particularly elbows.
- BS 3799: British standard for forged pipe fittings in threaded and socket weld types.
- GOST 17375: Russian standard for forged fittings used in high-pressure piping.
- Common Testing Standards:
- ASME B31.3: Testing requirements for process piping.
- NACE MR0175/ISO 15156: Compliance for materials in sour gas environments.
- API 598: Valve and fitting inspection standards.
Why Ample Alloys For Socket Weld Tees - ASME B1.11!
Ample Alloys stands out as a trusted supplier for Socket Weld Tees compliant with ASME B16.11, due to its commitment to quality, precision, and customer satisfaction. Here's why choosing Ample Alloys for your socket weld tees is the right choice:
High-Quality Materials
Ample Alloys uses premium materials such as stainless steel, carbon steel, alloy steel, and duplex stainless steel, ensuring that their socket weld tees have superior strength, corrosion resistance, and performance.
Customized Solutions
Understanding that each project may have unique requirements, Ample Alloys provides customized socket weld tees tailored to specific needs.
Precision Manufacturing
With advanced manufacturing techniques, Ample Alloys ensures that every socket weld tee is crafted with exceptional precision. This includes meticulous attention to dimensions, threading, and weld integrity.
Experience and Expertise
Ample Alloys has years of experience in the forged fittings industry, particularly in the supply of socket weld tees.
Socket Weld Tees are welded to pipes for a strong, permanent connection, ideal for high-pressure systems. Threaded Tees are screwed onto pipes, offering easy installation and disassembly, but are more suitable for low-pressure applications.
An Equal Tee has three branches of the same size, while a Reducing Tee has one branch that is smaller than the others. The reducing tee is used when there's a need to connect pipes of different diameters.
These tees are used across industries like oil & gas, chemical processing, power generation, and water treatment, typically in systems that require directional flow changes, size adjustments, or efficient branching.
