ANSI/ASME B16.11 Threaded Bushing Manufacturer

Forged Threaded Hexagonal, Reducing, Square, Flanged, Cap/Plug Bushing

A threaded bushing is a versatile pipe fitting used to reduce or adapt the size of threaded openings in pipes, valves, or other fittings. Typically made from materials like steel, brass, or stainless steel, threaded bushings feature internal threads that allow them to be screwed into place, creating a secure and leak-proof connection. They are widely used in various industries, including plumbing, oil and gas, hydraulics, and chemical processing, to connect pipes of different sizes or to change the direction of flow.

Forged bushings are designed to handle high pressures and harsh environments, making them essential components in both residential and industrial systems. Their ability to easily adapt to different threading standards, such as NPT or MPT, adds to their versatility and ensures compatibility with various piping systems. Whether used for maintenance, modification, or installation of new systems, threaded bushings provide a reliable, cost-effective solution for ensuring proper connections and smooth operation.

With a customer-first approach, Ample Alloys provides timely deliveries, competitive pricing, and exceptional after-sales support, making them the go-to supplier for businesses looking for top-notch threaded bushings. When you choose Ample Alloys, you're choosing a partner committed to quality, reliability, and the success of your projects.

Reliable Brass Threaded Bushing, Custom Threaded Bushings, Hex Threaded Bushing, NPT Threaded Bushing, MPT Threaded Bushing, High-Pressure Threaded Bushing, Stainless Steel Threaded Bushing, Pipe Thread Bushing, Threaded Bushing for Oil and Gas, Threaded Bushing for Plumbing, Hydraulic Systems Threaded Bushing with Flange, Malleable Iron Threaded Bushing, Bushing for Threaded Connections.

Threaded Bushing Specifications

Size Range

1/8″~4″ (DN6~DN100)

Form

Hexagonal, Reducing, Square, Flanged, Cap/Plug, Double-Ended Threaded Bushing

Stainless Steel

ASTM A182 & ASME SA182 F 304, 304L, 304H, 316, 316L, 316H, 317, 317L, 321, 321H, 310, 310S, 347, 904L, etc.

Standards / Dimension

ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Carbon Steel

ASTM A105, ASME SA105, A105N, ASTM A350 LF2, ASME SA350, ASTM A694, ASME SA694

Alloy Steel

ASTM A182 & ASME SA182 - F1, F5, F9, F11, F12, F22, F91

Pressure Class

2000LBS, 3000LBS, 6000LBS, 9000LBS

Type

Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

Duplex & Super Duplex

ASTM A182 / ASME SA182 - S31803, S32205, 2205, S32750, S32760, 2507.

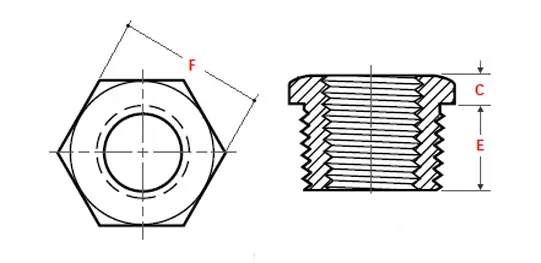

ASME B16.11 Threaded Hex Head Bushings (NPS 1/2 to 4) Dimensions

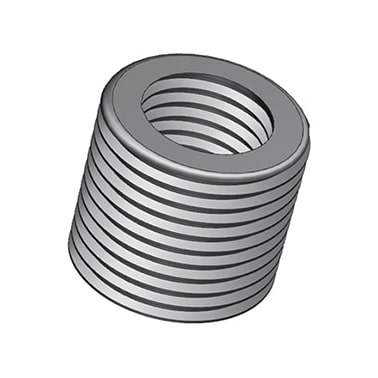

ASME B16.11 Threaded Bushings

NPS	Min Length E	Min Hex Height C	Nominal F
1/2	14	5	22
3/4	16	6	27
1	19	6	35
1.1/4	21	7	44.5
1.1/2	21	8	51
2	22	9	63.5
2.1/2	27	10	76
3	28	10	89
4	32	13	117.5

Forged Bushing Standards

Forged bushings are manufactured according to specific industry standards to ensure high performance, durability, and safety. These standards define the material, dimensions, manufacturing processes, and quality control for forged bushings, ensuring their suitability for various applications, including pipe fitting, mechanical, and structural uses.

ASME Standards (American Standards):
- ASME B16.11: Covers forged fittings such as socket weld and threaded fittings for high-pressure applications.
- ASTM A105: Specifies carbon steel forgings for piping components.
- ASTM A182: Standard for forged or rolled alloy and stainless steel materials for high-temperature service.
- ASTM A350: Covers low-alloy and carbon steel forgings for low-temperature applications.
- MSS-SP-79: Socket weld fittings with enhanced dimensions and tolerances.
- MSS-SP-83: Threaded and socket weld unions for the petroleum industry.
EN (European Standards):
- EN 10222: Forged steel fittings for pressure purposes.
- EN 10241: Steel threaded pipe fittings for the European market.
- EN ISO 17292: Specifications for fittings used in valve systems.
JIS (Japanese Standards) :
- JIS B2316: Covers forged steel pipe fittings such as elbows, tees, and reducers.
- JIS G3454/G3455: Pressure-resistant pipe materials for fittings.
International Standards:
- DIN 2605: German standard for forged fittings, particularly elbows.
- BS 3799: British standard for forged pipe fittings in threaded and socket weld types.
- GOST 17375: Russian standard for forged fittings used in high-pressure piping.
Common Testing Standards:
- ASME B31.3: Testing requirements for process piping.
- NACE MR0175/ISO 15156: Compliance for materials in sour gas environments.
- API 598: Valve and fitting inspection standards.

Why Ample Alloys For Threaded Bushing!

When you choose Ample Alloys, you're not just selecting a product — you're choosing a partner dedicated to delivering reliable, high-quality threaded bushings that meet your needs and exceed your expectations.

Tailored Solutions for Every Need

Every project is different, which is why we offer customized threaded bushings to fit unique requirements. Whether you need a specific thread type, material grade, or dimensions, we work closely with our clients to ensure our products align with the exact needs of their applications.

State-of-the-Art Manufacturing Process

We leverage cutting-edge technology in our manufacturing processes to create threaded bushings that meet and exceed industry standards. Our use of advanced forging, threading, and machining techniques ensures precision, reliability, and a perfect fit every time.

Robust Quality Control

Quality is at the forefront of everything we do. Each threaded bushing undergoes rigorous testing, including dimensional checks, pressure testing, and material analysis. This commitment to quality guarantees that our bushings meet the highest international standards, ensuring flawless performance and reducing the likelihood of costly repairs or failures.

Competitive and Transparent Pricing

We believe in offering excellent value without compromising quality. Ample Alloys provides competitive pricing for our threaded bushings, ensuring you get premium products at a cost-effective rate. We also offer transparent pricing without hidden fees, making budgeting for your projects easier.

What are the types of threads used in threaded bushings?

Threaded bushings come in various thread types, including NPT (National Pipe Thread), MPT (Male Pipe Thread), BSPT (British Standard Pipe Thread), and BSPP (British Standard Parallel Pipe). The choice of thread type depends on the region and the specific application.

How to install a threaded bushing?

Threaded bushings are installed by simply screwing them into a corresponding threaded hole or pipe fitting. It’s essential to apply the appropriate amount of torque to avoid over-tightening or damaging the threads. Thread sealant may be used for leak-proof installation in plumbing applications.

Are threaded bushings reusable?

In many cases, threaded bushings can be reused as long as they are in good condition and the threads are not worn or damaged. It’s important to inspect the bushing for any signs of corrosion, wear, or deformation before reusing it.
